Re: [DML] Re: Rob Grady's Personal Lower Suspension (Tangent: Lotus Esprit suspension)



Your first photo is from around 1988 or 89.  You can tell by the wheels.  Lotus
replaced the lower control arm during the 1985 model year depending on the
market - well after the DeLorean was designed.  The primary reasons for the
change was increasing horsepower, tire technology, and braking capabilities as
the Esprit evolved.  To give you some idea of the differences, my 1983 Esprit
had 212HP and far greater braking capability than my 1981 DeLorean with the
similar front suspension layouts.  The Esprit can be driven much harder than the
DeLorean and has very predictable handling under hard braking and cornering -
and by hard I mean in the 60-160 mph range.  This is with a well-maintained,
original specification front end.  By comparison, the DeLorean front suspension
is stressed to a much lesser degree.


Your second photo of the stripped car is of an S1 Esprit that had similar
horsepower and braking as the DeLorean, at a significantly lighter weight (about
800lbs).


 --
Mike




________________________________
From: Justin Mettee <jamettee@xxxxxxxxx>
To: dmcnews@xxxxxxxxxxxxxxx
Sent: Wed, November 9, 2011 6:41:53 AM
Subject: [DML] Re: Rob Grady's Personal Lower Suspension (Tangent: Lotus Esprit
suspension)


Given all the complaints, design similarities/differences to various other
automotive applications, etc., I decided to search for what the DMC's cousin of
the time used for front suspension.  I figured if Lotus based the chassis of the
DMC heavily on the Esprit of that time, then there should be similar parts &
geometries, right?

Well I found this:

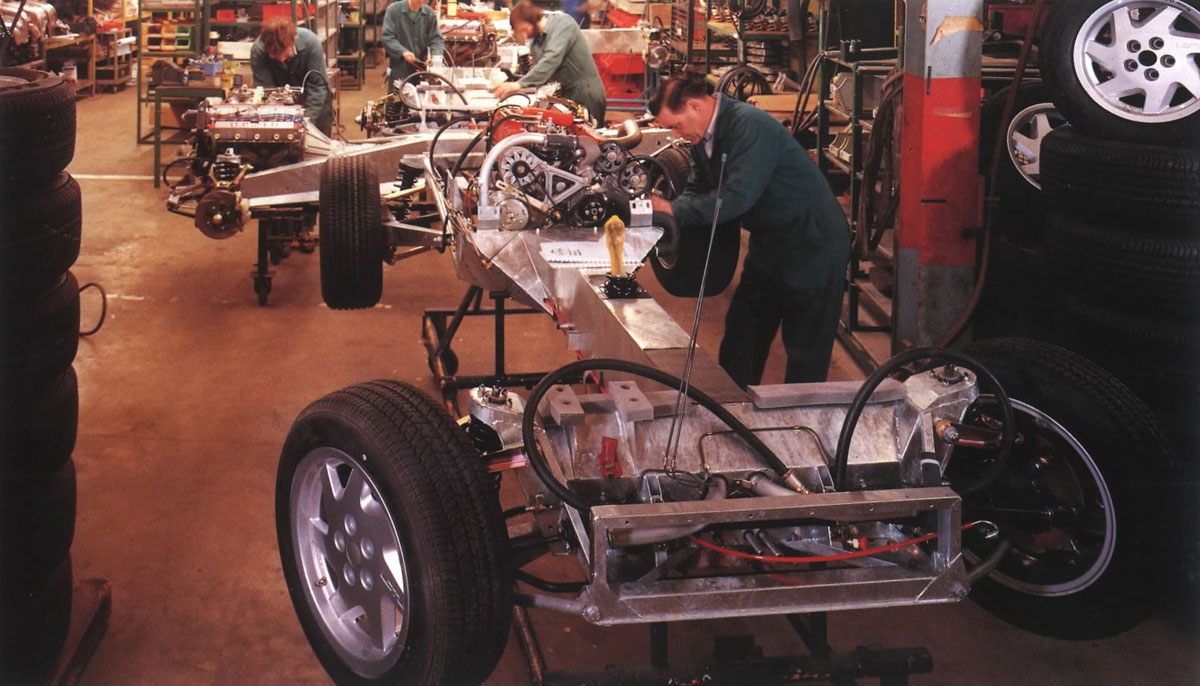

http://www.lotusespritturbo.com/Lotus_Esprit_Turbo_Chassis.jpg
The Lotus Esprit Turbo chassis on the assembly line, I believe during the
slightly later era (early/mid 80's).  (The above is from the websitee
http://www.lotusespritturbo.com/Lotus_History_Toyota_GM_Years.htm).  Interesting
how similar the upper front (& rear) suspension look similar, but the lower is
completely different & triangulated, but this is a later generation & more
performance-oriented car.

So I look further for the earlier Esprit 2.2 (1980-81) & find this site:
http://www.thelotusforums.com/forums/topic/38109-at-last-shes-stripped/ .  Down
a little way, you see the front suspension & it is pretty darn similar to the
DMC.  The one thing I see that is marginally better than our application is the
layout of the swaybar places the front mounts further outboard & likely
restrains the fore/aft movement of the LCA better than the DMC does.  Not
optimal, but probably a better driver setup than a DMC.

I wonder if Lotus owners have the same hard-braking control issues & LCA
failures that the DMC is prone to?

Justin Mettee
VIN 2075




[Non-text portions of this message have been removed]



------------------------------------
